Motoman HP20-6 arc welding cell double HSB-1000 positioner Fronius CMT 4000

En attente de plus de stock

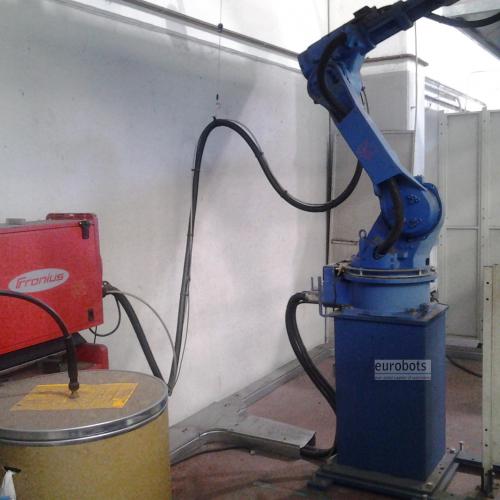

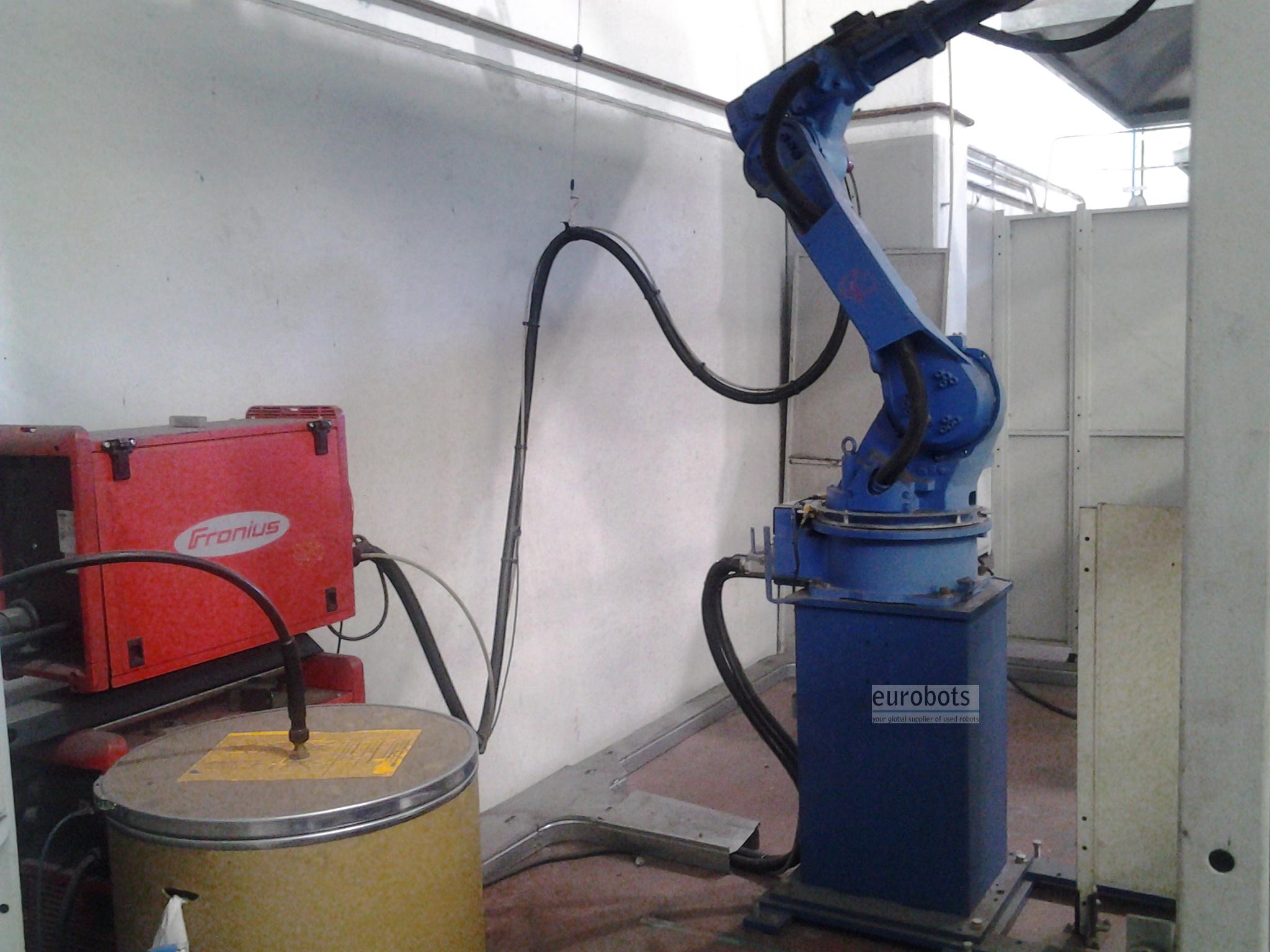

8 axis Motoman arc welding cell consisting of:

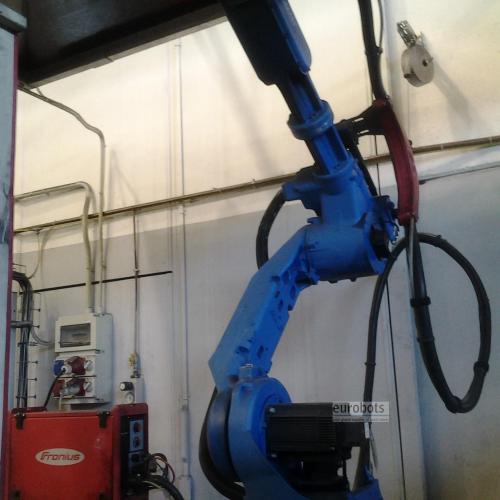

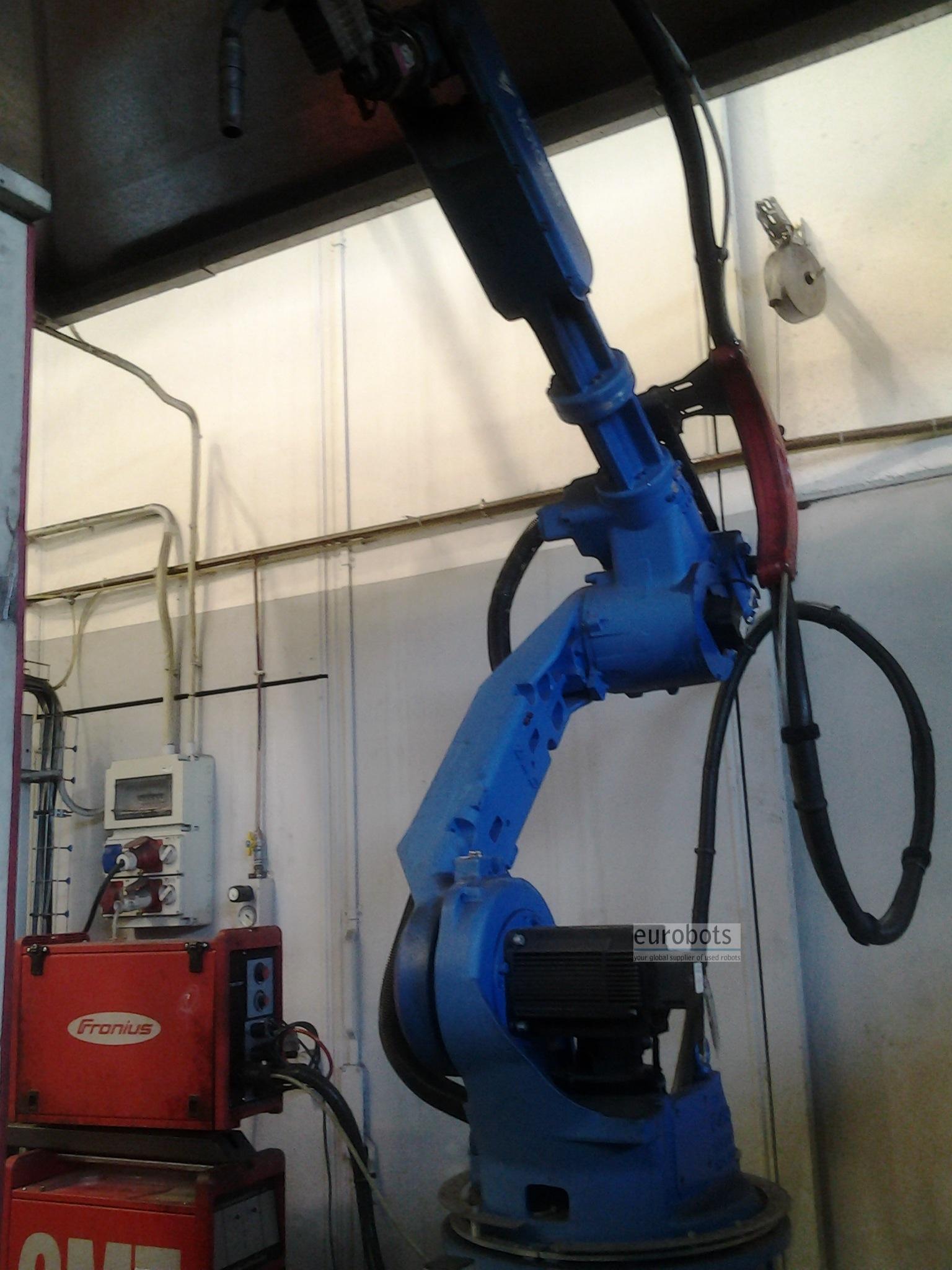

- 1 x Motoman HP20-6 (1915 mm horizontal arm reach) 6 axis industrial robot with NX100 controller

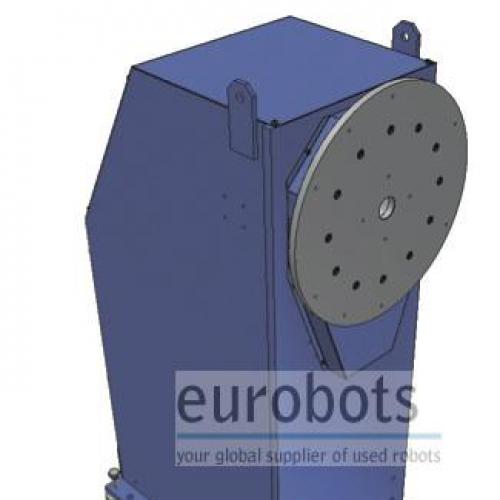

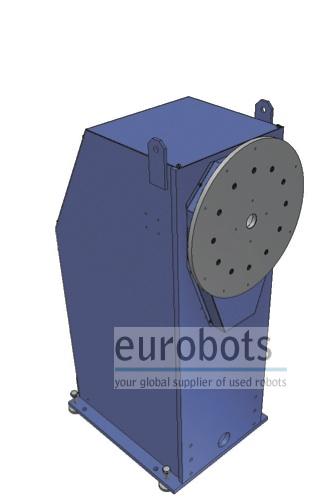

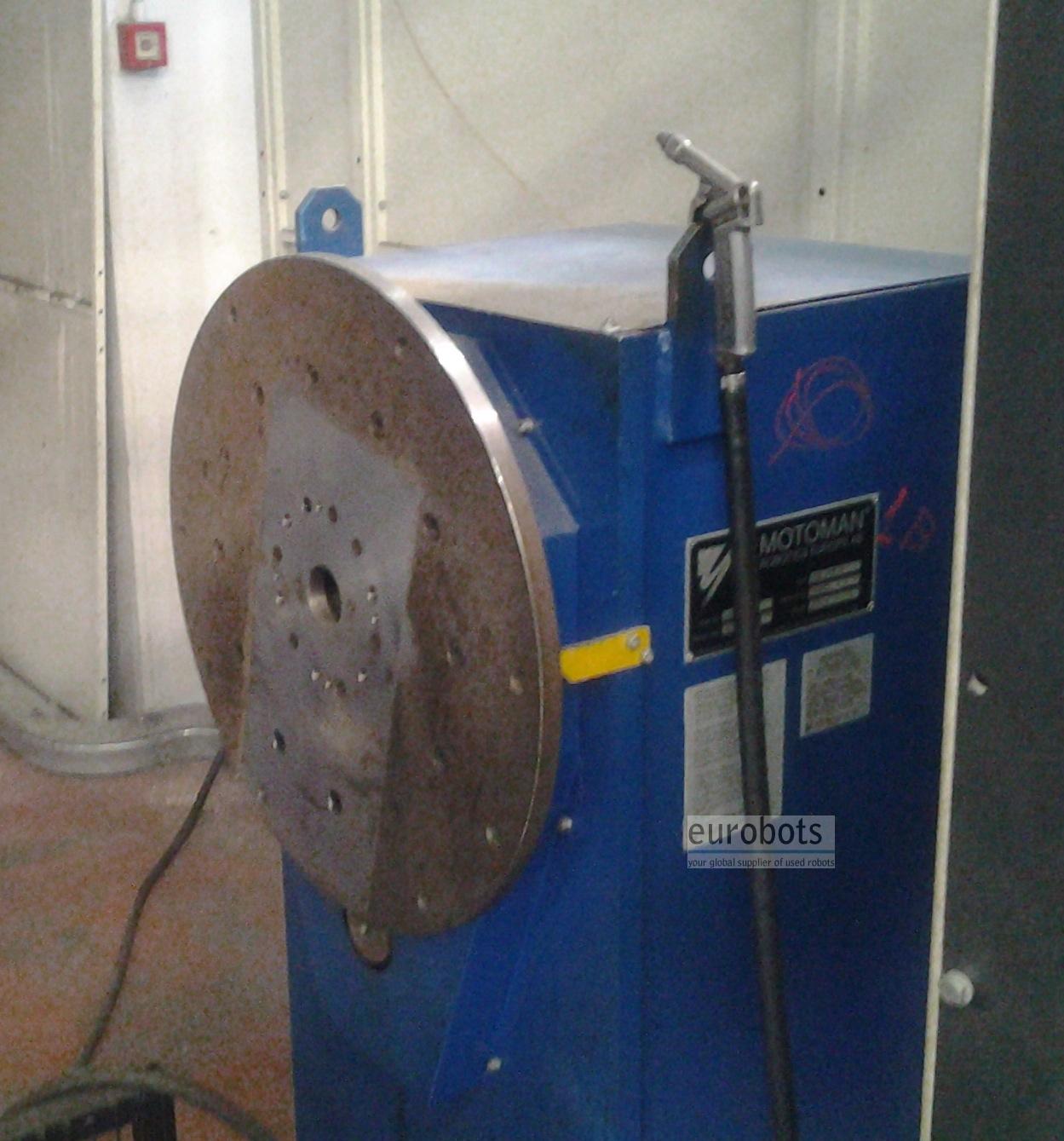

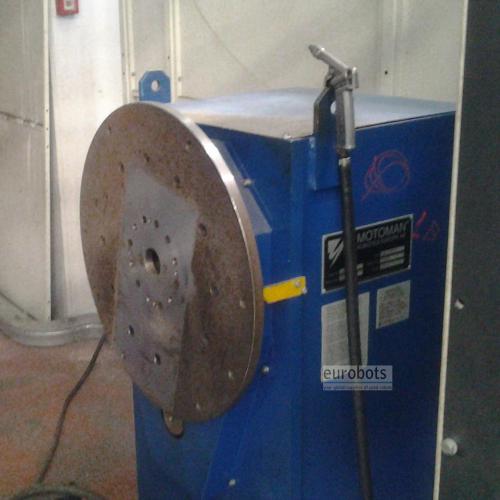

- 2 x HSB-1000 CD servocontrolled rotary positioner. This is a one station positioner for workpieces requiring rota- tion about one axis. To support long workpieces it is advisable to use a supplemen- tary tailstock. The free standing SPB tailstock can be mounted directly on the floor at an appropriate distance from the posi- tioner. The SPD tailstock is equipped with a dove-trail track from which it can be adjusted manually to a suitable distance from the positioner.

Technical data : HSB-1000

  • Maximum payload per station: 1000 kg
  • Rated speed (rpm): 0-5.32

- 1 x Fronius CMT 4000 power source (cold metal transfer)

- 1 x Liquid cooled welding torch with anticolision

- 1 x torch cleaning and cutting station

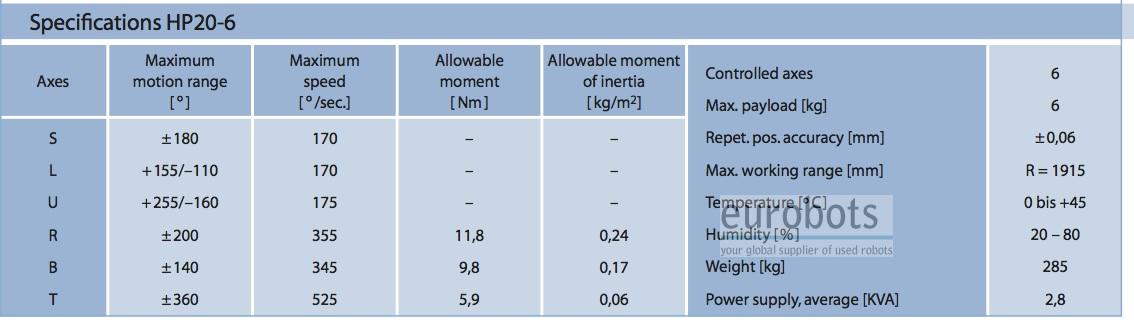

Robot Motoman HP20-6 features

    * Maximum Load of Robot: 6 kg

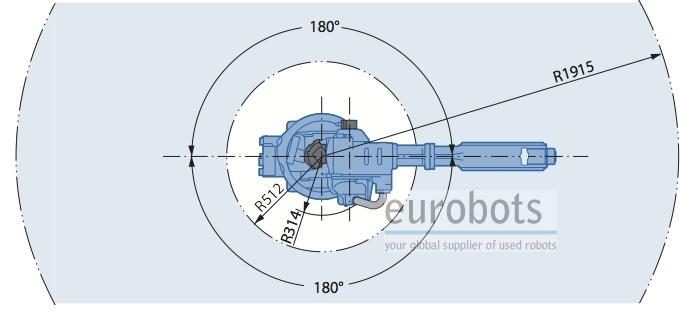

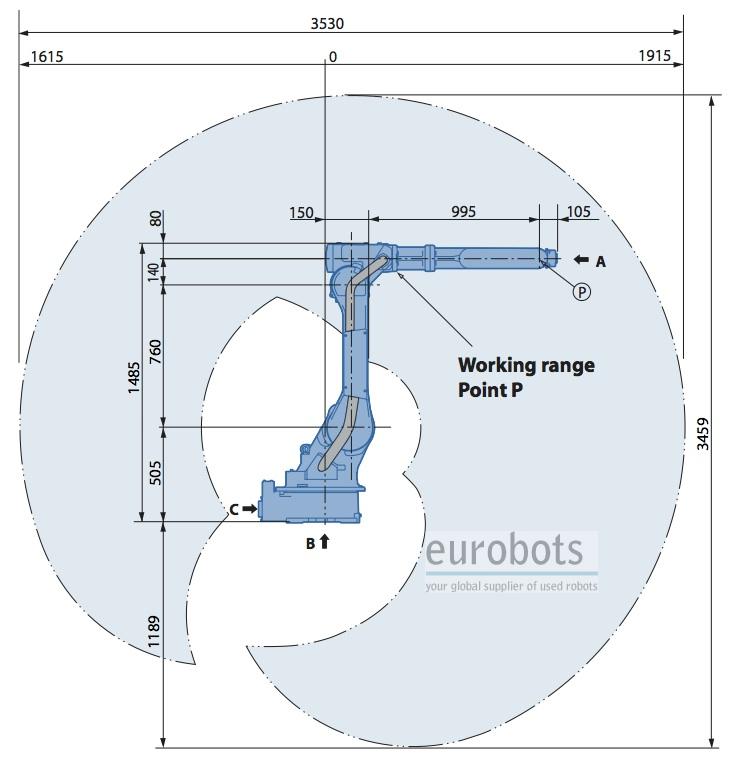

    * Maximum Reach: 1915 mm
    * Repeatability: 0.06 mm
    * Controller: NX100

Robot Motion Speed

    * Axis 1: 170º/s
    * Axis 2: 170º/s
    * Axis 3: 175º/s
    * Axis 4: 355º/s
    * Axis 5: 345º/s
    * Axis 6: 525º/s

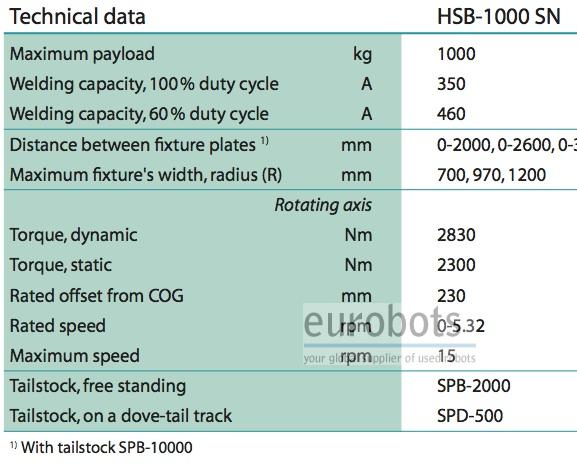

Technical data servocontrolled positioner HSB-1000

  • Maximum payload per station: 1000 kg
  • Rated speed (rpm): 0-5.32

Applications

Soudage à l’arc
